Item

Specifications

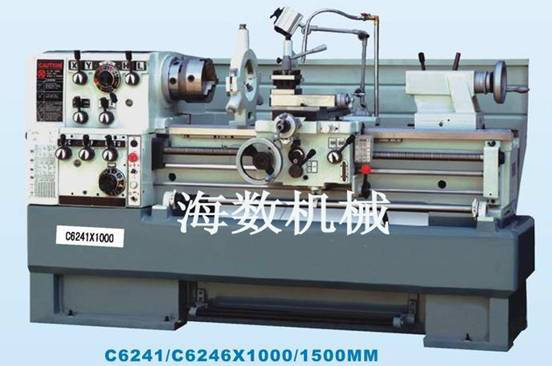

C6241

C6246

Swing Over Bed

410mm (16”)

460mm（18”）

Swing Over Cross Slide

224mm (8~13/16”)

274mm (10~3/4”)

Swing In Gap

640mm (25~1/8”)

690mm (27~1/8”)

Length Of Gap

155mm (6~1/8”)

Max. Length Of Workpiece

1000mm (40”)/1500mm（60”）

Bed Width

300mm (11-13/16”)

Spindle Nose

D1-6

Spindle Bore

58mm (2~1/4”)

Taper Of Spindle Bore

NO.6Morse

Range Of Spindle Speed

12changes 25~2000r/min

Max.Travel Of Compound Rest

120mm (4~3/4”)

Max.Travel Of Cross Slide

290mm (11~3/8”)

Leadscrew Pitch

Metric 6mm

Max.Section Of Tool

25mm×25mm (1×1”)

Longitudinal Feeds Range

42kinds 0.031~1.7mm/rev (0.0011”~0.0633”)/rev

Cross Feeds Range

42kinds0.014~0.784mm (0.00033”~0.01873”)

Metric Threads Range

41kinds0.1~14mm

Inch Threads Range

60kinds2~112T.P.L

Diametrical Pitches Range

50kinds4~112D.P.

Module Pitches Range

34kinds0.1~7M.P.

Dia. Of Tailstock Sleeve

60mm (2~5/16”)

Travel Of Tailstock Sleeve

120mm (4~3/4”)

Morse Taper Of Tailstock Sleeve

NO.4Morse

Power Of Main Motor

4/5.5kw

Power Of Coolant Pump

90w
