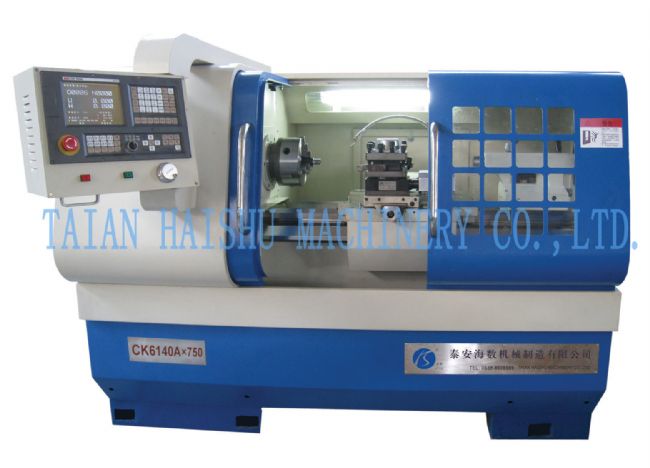

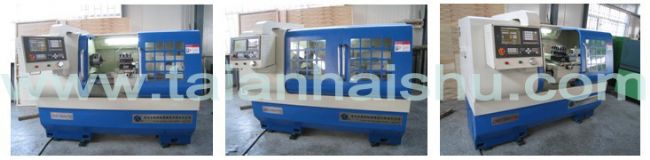

CK6136A/CK6140A CNC lathe
UpdateTime:2012-11-30 10:19:25
Views:
Brand:HaiShu
Model:CK6136A/CK6140A
Order Hotline:+86-538-8606169
Details

First、Technical parameters

Project

Project Names

Technical parameters

Technical Specifications

Maximum turning diameter over bed mm

φ360/φ400

The largest diameter of workpiece rotation skateboard (mm

φ245

Max length of the (mm

750、1000

The main drive

The main drive in the form

Independent of the spindle, stepless frequency conversion

Number of spindle speeds

No class

Spindle speed range (r/min

200-2500

Form the spindle head

6Num,A2Style

Diameter of Spindle Bore (mm

φ60

Front spindle taper hole

MT6

Chuck diameter (mm

φ200/φ250

Power of main motor (KW

5.5

Feed system

Knife stroke (mm

XTo:260       ZTo:750

Rapid traverse to the (mm/min

XTo:6000      ZTo:8000

Repeatability (mm

XTo:0.01       ZTo:0.015

Workpiece machining accuracy

IT6-IT7

The surface roughness

Ra1.6

Tailstock unit

Diameter of tailstock quill (mm

φ60

Tailstock sleeve travel (mm

120

Tailstock sleeve taper taper

MT4

Knife unit

Standard

Vertical Four-electric turret

Special configuration options

Horizontal six, eight-station electric knife or knife row

Repeatability (mm

0.008

Arbor section (mm

20×20/25×25

Dimensions and weight

Overall dimensions (L × W × H) (mm

2150×1450×1650,2400×1450×1650

Net weight (Kg

18002000



Second, the characteristics

1、 Horizontal flat bed structure;

2、 Spindle frequency stepless speed regulation;

3、 X / Z axis servo-driven feed system;

4、 Spindle bore increase (φ60mm); (Note: General spindle bore φ52mm)

5、 Bed rail ultra-quenching;

6、 Bed rails with side saddle and slide a "laminating" process;

7、 Precision ball screws, high rigidity precision compound bearing structure;

8、 Ball screw and guide rail with automatic lubrication surface;

9、 There are vertical four-station turret, six-position, horizontal six-station eight-station and other options;

10、Required configuration manual, pneumatic, hydraulic or manual chuck, pneumatic, hydraulic tailstock.

11、CNC control system Guangzhou, Beijing KND, Guangtai CNC, Siemens, FANUC and other options.

Third, the use of

Suitable for steel, cast iron, nonferrous metals and other materials, semi-finishing and precision machining.
